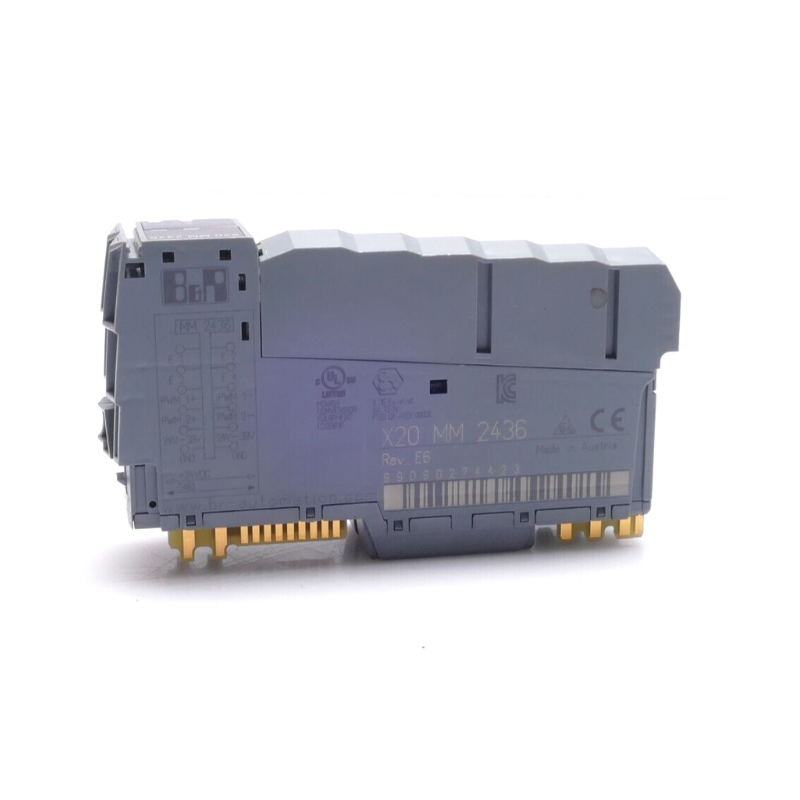

X20 MM 2436
- 2x outputs (H bridge) with PWM control and 24 to 39 VDC ±25% supply
- 3 A nominal current (3.5 A max current)
- 15 Hz to 50 kHz frequency, 16-bit
- Frequency mode with 10 to 6553.5 Hz or 1 to 655.35 Hz resolution.
- PWM resolution, 15-bit + sign, minimum 10 ns
- Configurable dither
- 2x 2 inputs 24V, can be configured as AB
- Sink connection
- 1-wire connections
The motor bridge module is used to control 2 DC motors with a nominal voltage of 24 to 39 VDC ±25% at a nominal current up to 3 A. The module can be reconfigured and used in current controller mode for controlling inductive loads. The module is also equipped with 4 digital inputs, which can be used as incremental counters. Each motor is controlled with a full-bridge (H-bridge). This enables the motors to be moved in both directions.
