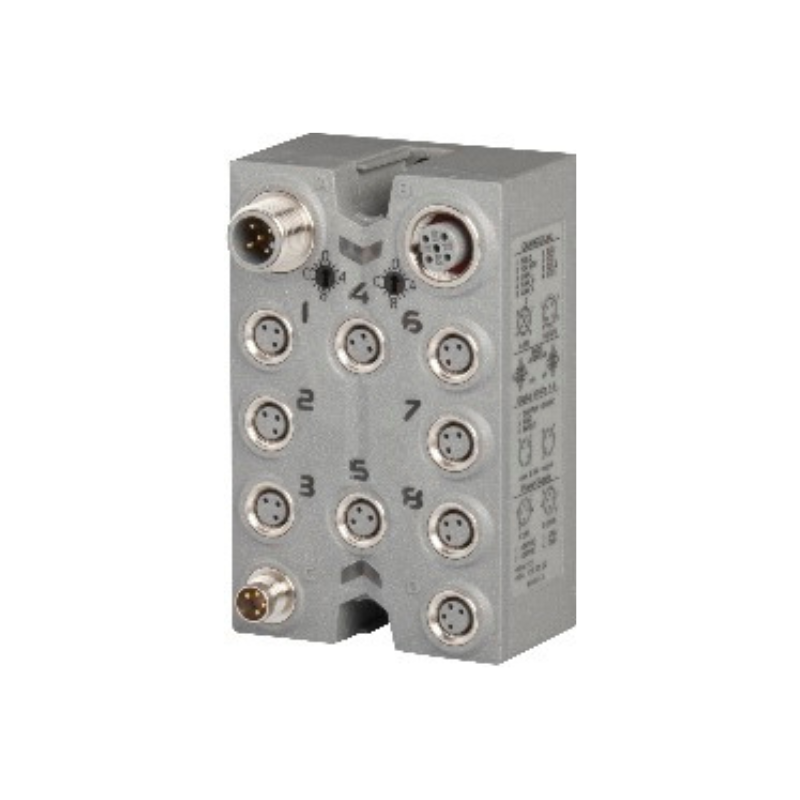

X67 DM 9321

• 8 digital channels, configurable as inputs or outputs
• Node number switches for setting the X2X Link address
• Outputs with short circuit protection
• All outputs with single-channel diagnostics
• Configurable input delay
• 2 additional channels with counter functions

This module is equipped with 8 digital channels that can be configured either as inputs or outputs. The inputs are designed for a sink circuit, and the outputs are designed for a source circuit.

The node number switch for setting the X2X Link address is a unique feature. When modular machine configurations change, it is required, for example, to define certain module groups at a fixed address that is independent of the preceding modules in the line. All subsequent standard modules refer to this offset and use it automatically for addressing purposes.
